AIR 22-20S | 22 kW 20 Bar Skid-Mounted Air Compressor
$0.00
High-Pressure Air. Built for Laser Cutting.

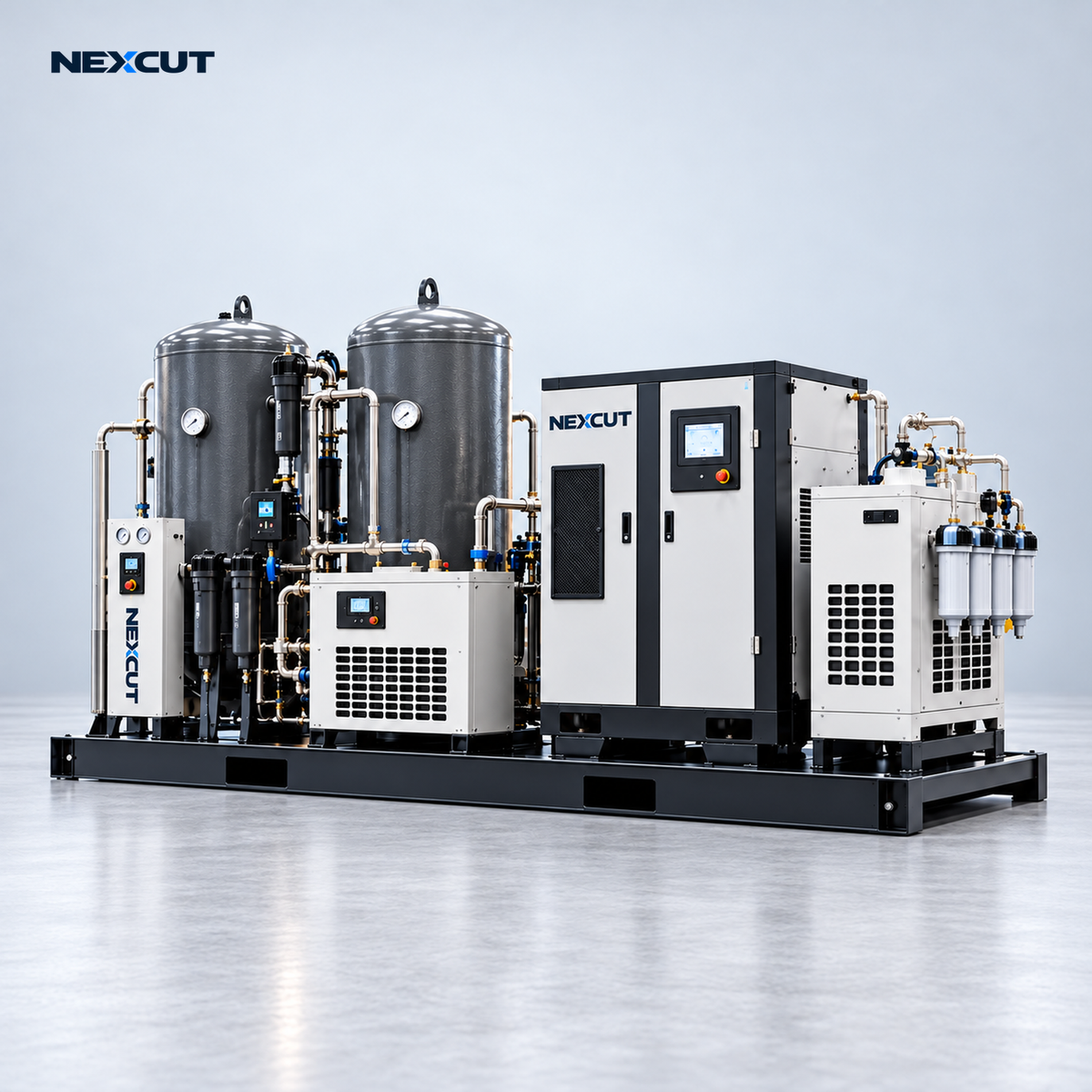

The NEXCUT AIR 22-20S is a 22 kW, 20 bar skid-mounted compressed air system engineered for fiber laser cutting applications. The integrated skid configuration combines compressed air generation, drying, filtration and air storage to provide a stable, clean and high-pressure air supply.
Key Features
- 22 kW rated power
- 20 bar working pressure
- Approx. 1.8 m³/min air delivery
- VFD starting system
- Air-cooled design
- Refrigerated + adsorption drying system
- Eight-stage filtration
- Dual 600 L air receiver tanks
- Skid-mounted integrated system
- One-year warranty
Typical Application
Fiber laser cutting machines requiring clean, dry and high-pressure compressed air.
Need help selecting the right configuration?
Contact NEXCUT with your laser power, required pressure, voltage and application. We will recommend the appropriate system.
